GAMDIAS KRATOS M1-600B 600W Bronze PSU

KRATOS M1-600B
LUMINOUS QUIETUDE

• Meets 80 PLUS Bronze Efficiency
• Supports Motherboard Sync Functionality
• Neon-Flex RGB 30 Built-In Lighting Effects
• APFC With PF value of 0.99
• Automatic Fan Speed Optimization
• Silent Mode
SPECIFICATIONS

LUMINOUS QUIETUDE
KRATOS M1-600B is an ultra silent high-quality fan with a built-in customizable ARGB fan. Meeting 80 PLUS Bronze efficiency, greatly reducing noise and operation cost while remaining a safe and lasting power supply unit.


ULTRA SILENCE
KRATOS M1-600B is geared with an ultra quiet fan with a switch to turn silent mode on and off. Enjoy max heat dissipation or turn on silent mode to enjoy optimized automatic fan speed.


80 PLUS BRONZE CERTIFIED
Efficiency rating reflects how much power is retained on transfer, not build quality. KRATOS M1-600B, with an 80 PLUS Bronze efficiency rating, is a safe and lasting first-rate power supply unit.


CUSTOMIZABLE AND ADAPTIVE
KRATOS M1-600B supports addressable RGB sync via motherboard manufacturer's sync software and also has 30 built-in lighting effects easily accessible with a simple button switch.

SPECIFICATIONSkeyboard_arrow_right

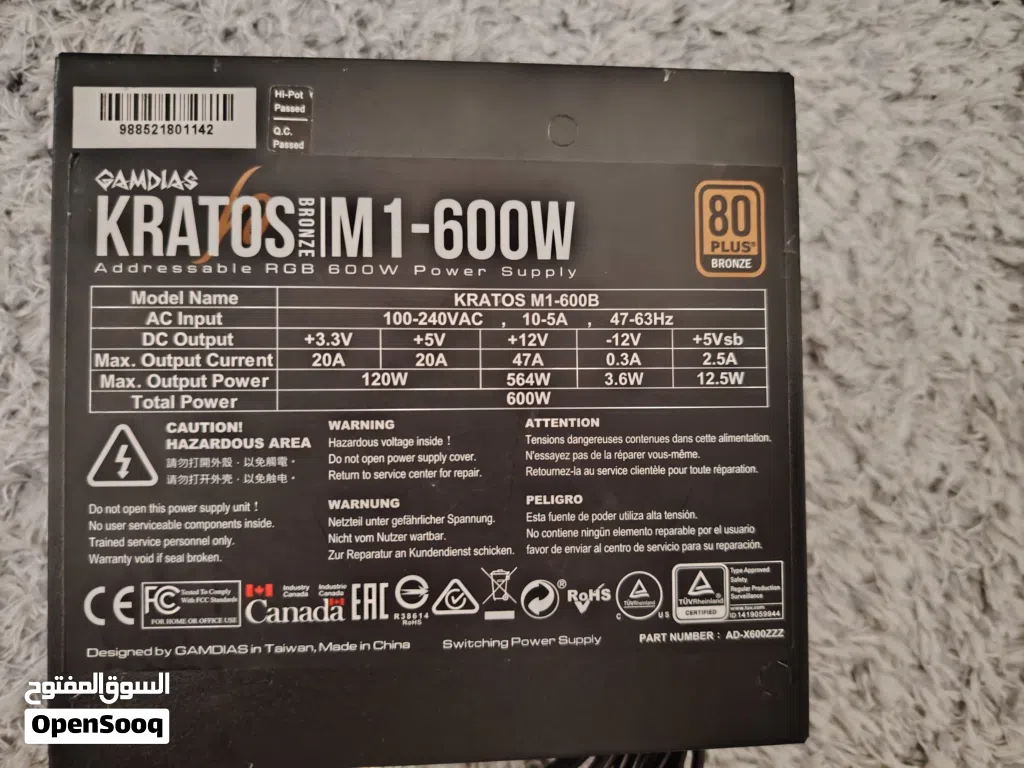

Model
KRATOS M1-600B
POWERkeyboard_arrow_right
Type
ATX12V v2.2
Efficiency
Meet 80 PLUS Bronze efficiency
Power Factor Correction
APFC with PF value of 0.99
Support MB Sync
5V 3-pin Addressable (Digital) RGB Header Only
Dimension (L x W x H)
140 x 150 x 86 mm
Support C6/C7 power state
No
AC Input
100-240V / 4.5-9.5A / 47-63Hz
DC Output
+3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current
20A / 20A / 47A / 0.3A / 2.5A
Max. Output Power
120W / 564W / 3.6W / 12.5W
Total Power
600W
Protection
OVP / UVP / OPP / SCP / SP / ICP
Main Power
1 (20+4 Pin)
CPU
1 (4+4 Pin)
PCI-E
2 (6+2 Pin)
SATA
5 (5 Pin)
Molex
2 (4 Pin)
Floppy
1 (4 Pin)
Modular
Non Modular
Flat Cable
Yes
Lighting Effect
30 Neon-Flex RGB
Silent Mode
Yes
DC to DC
No
